** Effective November 1st, 2024 **
It's been a pleasure serving our customers for over 50 years.
However, as of Nov. 1, 2024
we will be retiring and no longer accepting orders.
If you
would like to order a gauge or replacement parts, please email us immediately!
Don@QuickSkan.com
| Model Name |
Measurement
Size Range |
| |
|
| Model D |
Any size from 1.60 to 18.10 inches. |
| Model DE623 |
Any size from 6.00 to 23.00 inches. |
| Model E825 |
Any size from 8.00 to 25.00 inches. |
| Model TV937 |
Any size from 9.00 to 37.00 inches. |
| Model F |
Any size from 16.50 to 50.20 inches. |
| Model WP1555 |
Any size from 15.00 to 55.00 inches. |
| Model G |
Any size from 26.50 to 60.20 inches. |
| Model RT2565 |
Any size from 25.00 to 65.00 inches. |
| Custom |
|
|

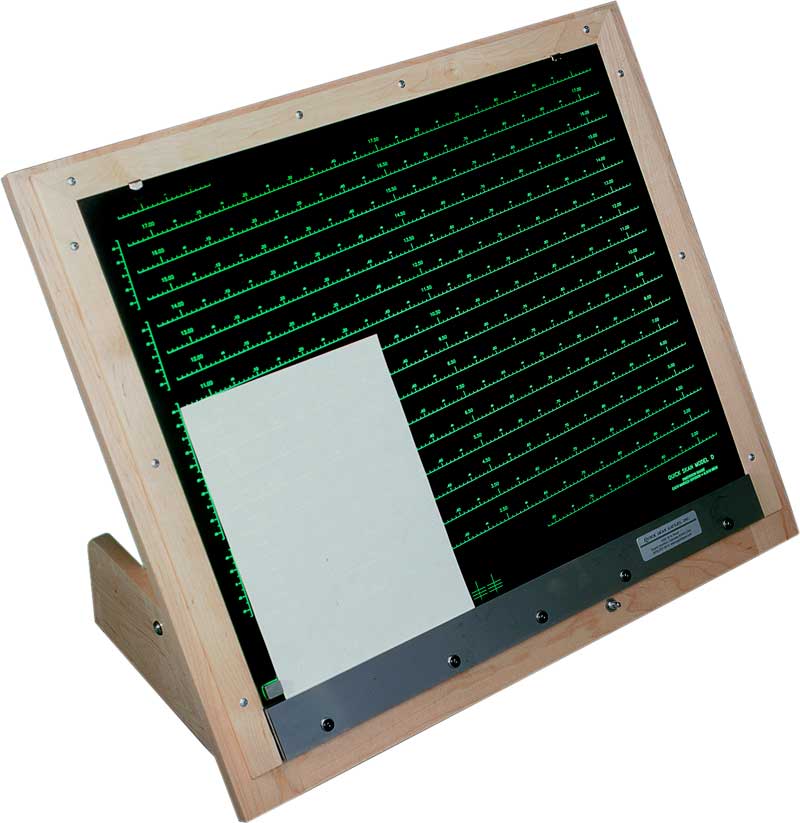

Model
D: 1.60 to 18.10 inches
This popular cut-size dimension gauge measures the length, width
and squareness of any size sheet between 1.60 inches
and 18.10, to a thousandth of an inch. The Model D is the only
Quick Skan Gauge that offers 3, 5 and 7-hole punch accuracy determination.
$5,500 USD
Model
DE623: 6.00 to 23.00 inches
This new dimension gauge measures the length, width and squareness of any size sheet between 6.00 inches and 23.00 inches to a thousandth of an inch.
(Image not available at this time)
$6,000 USD

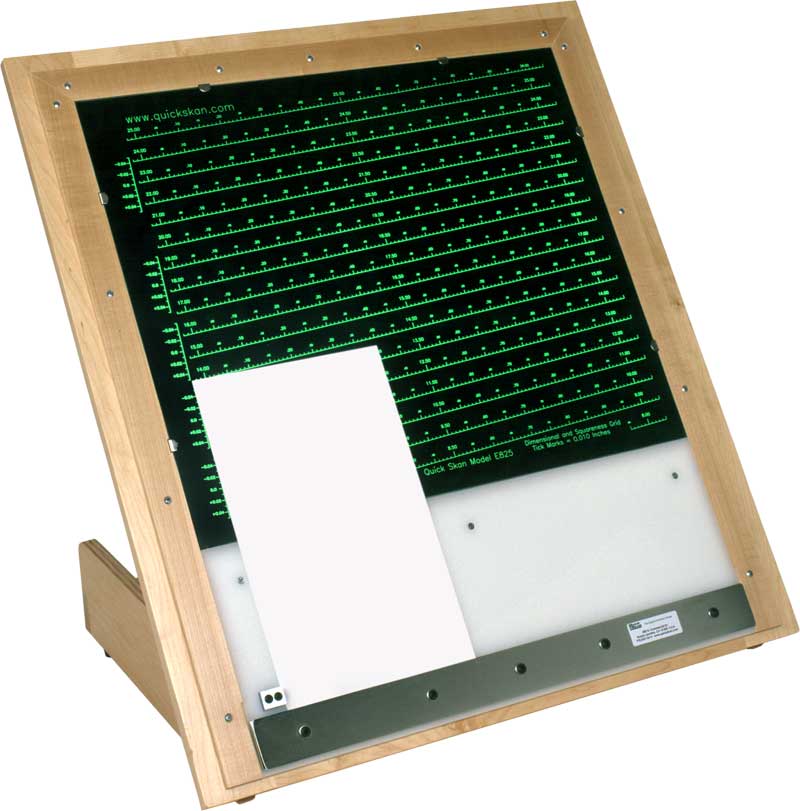

Model
E825: 8.00 to 25.00 inches
The Model E825 will measure the length, width and squareness of any
size sheet between 8.00 and 25.00 inches, to a thousandth of an
inch.
$6,400 USD
Model
TV937: 9.00 to 37.00 inches
This new dimension gauge measures the length, width and squareness of any size sheet between 9.00 inches and 37.00 inches to a thousandth of an inch.
(Image not available at this time)
$6,900 USD

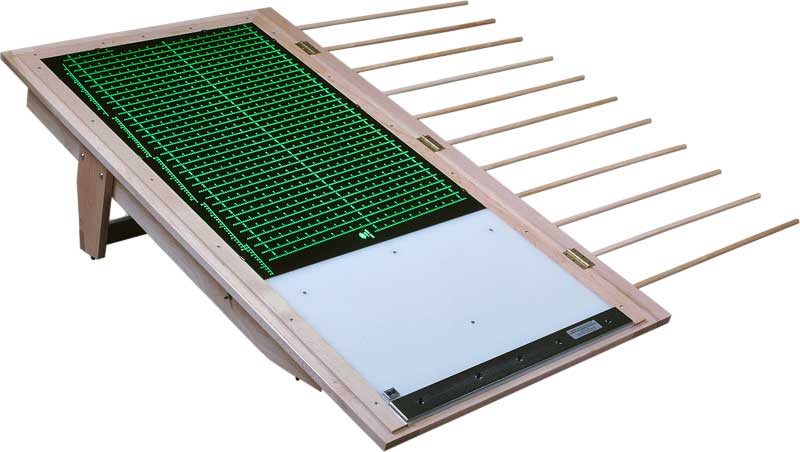

Model
F: 16.50 to 50.20 inches
The Model F is a popular folio-sized dimensional gauge
that measures length, width and squareness of any size
sheet between 16.50 and 50.20 inches, to a thousandth inch.
$8,250
USD
Model
WP1555: 15.00 to 55.00 inches
This new dimension gauge measures the length, width and squareness of any size sheet between 15.00 inches and 55.00 inches to a thousandth of an inch.
(Image not available at this time)
$9,500 USD

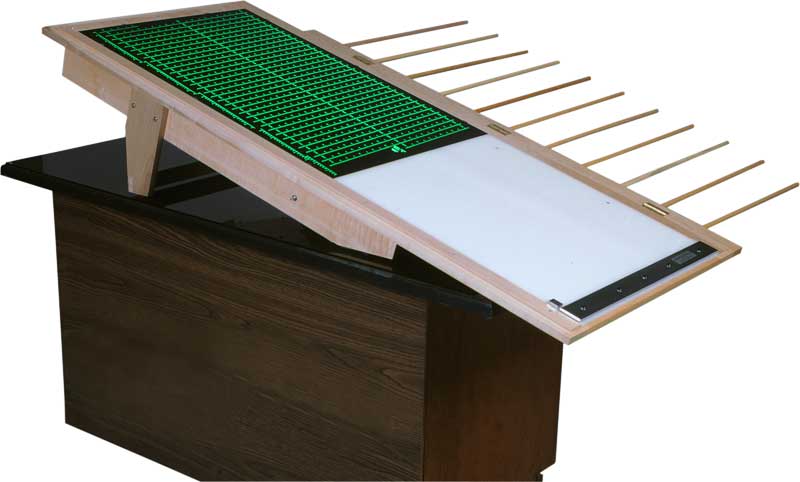

Model
G: 26.50 to 60.20 inches
This is our largest standard sized gauge which measures
length, width, and squareness of any size sheet between
26.50 and 60.20 inches, to a thousandth of an inch.
$9,100 USD
Model
RT2565: 25.00 to 65.00 inches
This new dimension gauge measures the length, width and squareness of any size sheet between 25.00 inches and 65.00 inches to a thousandth of an inch, and also measures squareness.
(Image not available at this time)
$9,500 USD
Custom
Size Gauges
If the standard gauges do not suit your needs, contact Quick Skan Gauges with your dimensional needs to see if a custom gauge would be the answer.
